Dimensions (H x W x D) 1460 x x 750 mm
Flow control O to 10 Umin for oxygen, O to 12 L/min for NO2 And O to 15 L/min for air
Gas inlet two pin yokes for 02 and NZO; and four mnnectors for æntral pipeline gas
Backbar electatec for two vaporizers with interlock safety mechanism
Emergency O2 Flush 35 to 45 Litres / min
Display 8.4 inch colour TFT Screen
Tidal volume 20 to 1500 ml
Respiration rate 1 to 50 breaths/min
Inspiratory time 0.3 to 3 seconds
Inspiratory Hold 0 to 2 seconds

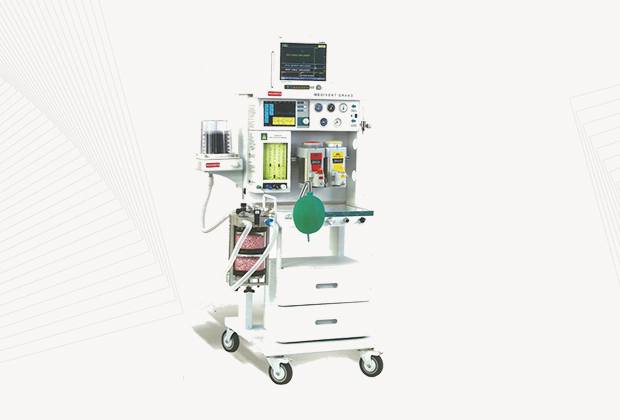

Medisys Medivent Grand Workstation

The anaesthesia delivery system has the capability to operate at a very low Fresh Gas Flow. With its high end features and advanced ventilation capabilities, it can easily meet the challenging conditions in the room. Ventilating an obese or a patient in prone position is no longer a problem. The Hypoxic Guard and OFPD have been provided as standard safety protocol. While the hypoxic guard ensures FGF to contain at least 25% oxygen, the protection against oxygen failure (OFPD) activates a device to cut off the flow of NZO and wam, with a visual flash and an audio alarm. While the FGF Decoupling and the Circuit Compliance Compensation try to make for the net tidal volume, the system of breath to breath correction ensures the delivery unaffected with the change in lung characteristics. The Ascending Bellows in the ventilator provides visua! feedback for patient's response, leakages or low FGF. At times, the Pressure Control Mode is preferred to Volurne Control to avoid the likelihood of High Peak Pressure. The PRVC Mode, in such cases, delivers the target volume keeping the pressure to the minimum. The operator is relieved and is no longer required to adjust the pressure manually.

Features:-
  • Operates at very low fresh gas flow of 500 ml per minute.
  • Provides for quick changeover for open / closed circuit, Auto / Manual and Nao / Air operation.
  • Oxygen ratio controller (ORC) maintains the flow of NZO compared to the flow of oxygen.
  • Provides for hypoxic guard and OFPD as standard safety protocol.
  • 8.4 inches colour TFT screen for display of parameters and the PT curve.
  • Provides for full range of ventilation modes. Delivers tidal volume after compensating for the loss due to compression of gas in the circuit.
  • Fresh Gas Flow Decoupling (FGD) makes Tidal volume unaffected for any change in FGF.
  • Tidal volume is delivered regardless of changes in lung characteristics.
  • Built in oxygen analyzer for display the FiOz Provides for PEEP, pressure support and apnea backup ventilation.
