8 Hours Battery Backup

The highly power-efficient system of V310+ enables seamless patient care. Its 8 hours of independent operation without the requirement of power supply makes it ideal for ICUs in remote locations facing challenges of power outage as well as intra-hospital transfer of the patient.

Attractive AMC/CMC Options

Assure reliable maintenance with Noccarc’s attractive Annual Maintenance (AMC) & Comprehensive Maintenance (CMC) schemes. A vast service network enables quick and easy resolution to all maintenance & service requirements.

Compatible with Standard Accessories

Thoughtfully designed Noccarc V310+ ICU Ventilator is compatible with standard consumables & accessories. This contributes to ease of operations and significantly reduces operational costs.

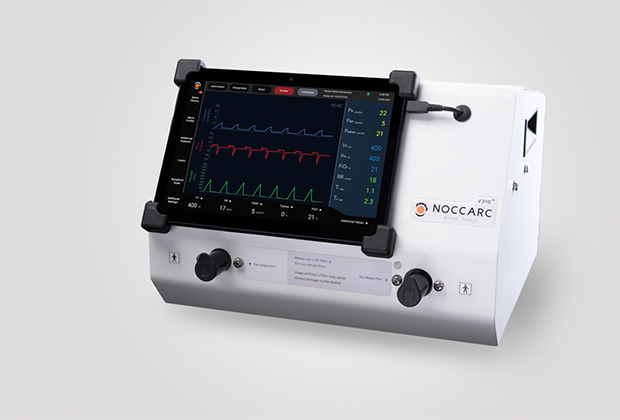

Noccarc V310+

Discription

Noccarc V310+ offers a cost-effective respiratory care solution with a wide range of ventilation modes and advanced features. Its turbine-based design enables independent operation at ICU set-ups without the need of compressed medical air. The intuitive 10-inch touchscreen interface offers extremely easy controls and enhances healthcare professionals’ patient care experience.

High Flow Oxygen Therapy

The HFOT mode of Noccarc V310+ can deliver up to 100% humidified and heated oxygen at a flow rate of up to 75 LPM. HFOT boosts alveoli recruitment and delivers high FiO2, enabling enhanced patient comfort.

Advanced Therapy

The wide range 14 modes of ventilation includes advanced therapies such as APRV that facilitates spontaneous breathing by delivering continuous airway pressure with brief releases. The dual level supported breaths can help improve oxygenation and protect lungs against respiratory distress.

Non-invasive Therapy

Along with invasive therapy, Noccarc V310+ offers noninvasive capabilities with multiple modes to Adult & Paediatric patients. This helps healthcare professionals administer respiratory care without the use of tracheal intubation, which further reduces the chances of infection and helps in the effective weaning of patients recovering from endotracheal intubation.

Respiratory Rate (RR) 1-80 BPM
Peak Inspiratory Pressure 80 cm of H2O
PEEP 0 -50 cm of H2O
Pressure Support 0 -60 cm of H2O
I:E Ratio 1:10 to 10:1
Tidal Volume (VT) 50 -2000 mL
Trigger Flow Sensitivity 1 -20 L/min
Input Current < 2.00 A
FiO2 Control Closed Loop Electronic Manipulation
O2 Therapy Continuous flow 10 -75 L/min Concentration 21 -100 %
Oxygen Input 46-60 PSIG
Screen 10” TFT LCD Touchscreen
Weight ~ 10.3 Kg Patient Unit ~ 25 Kg with Trolley
Battery Lithium, Interna
Power Consumption < 150 W
